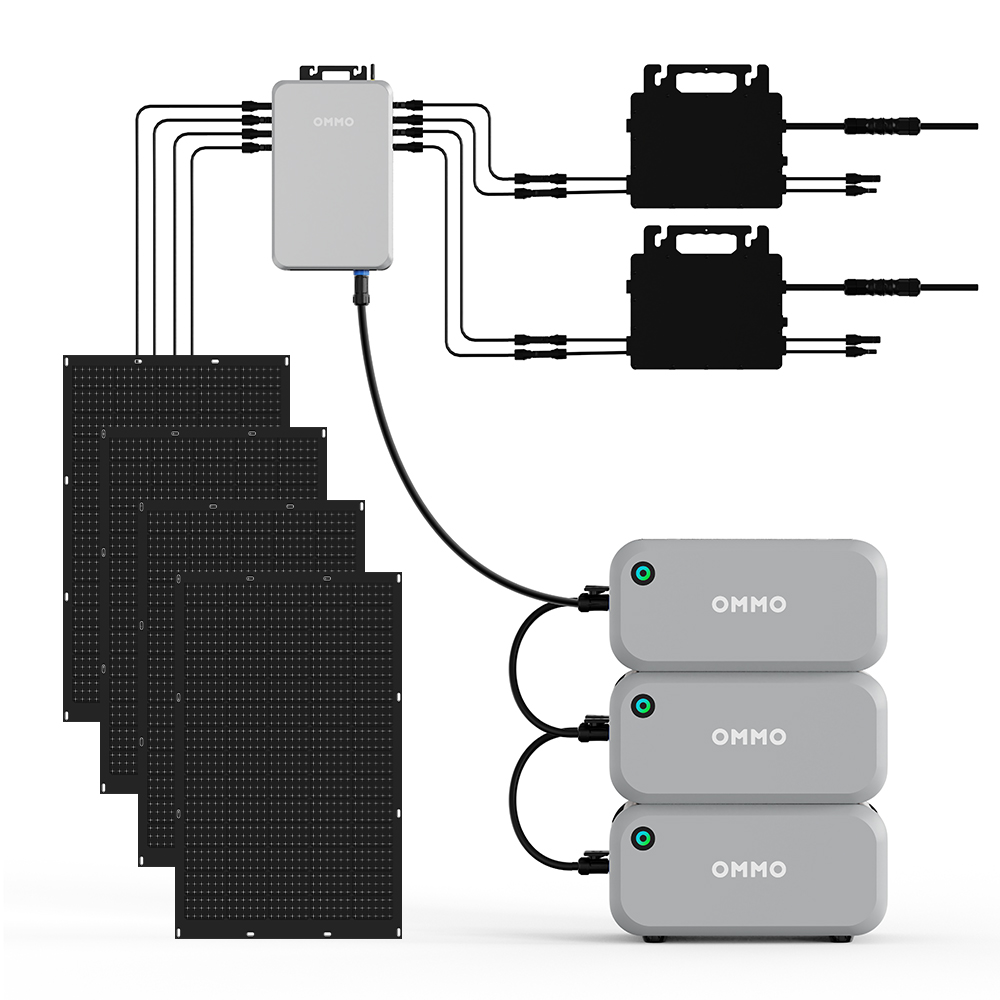

Portable Power Station, Balcony PV Solar Systems

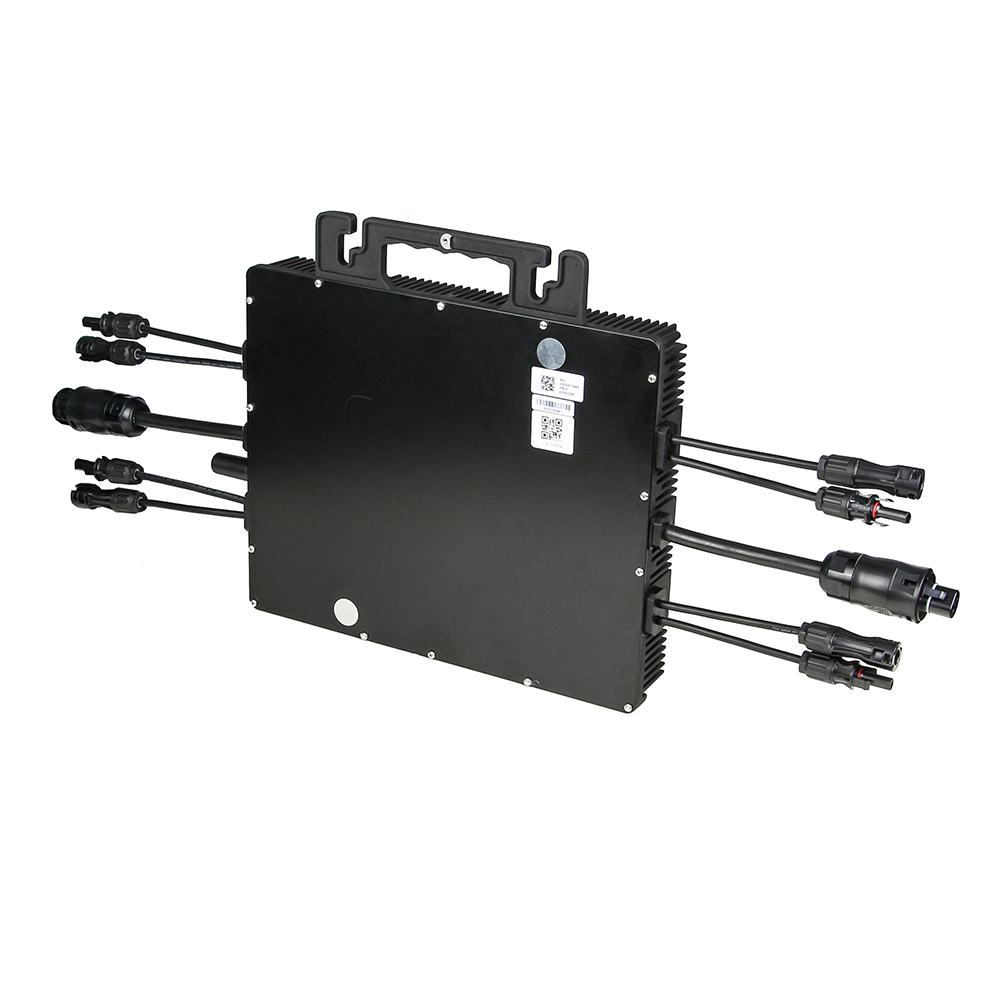

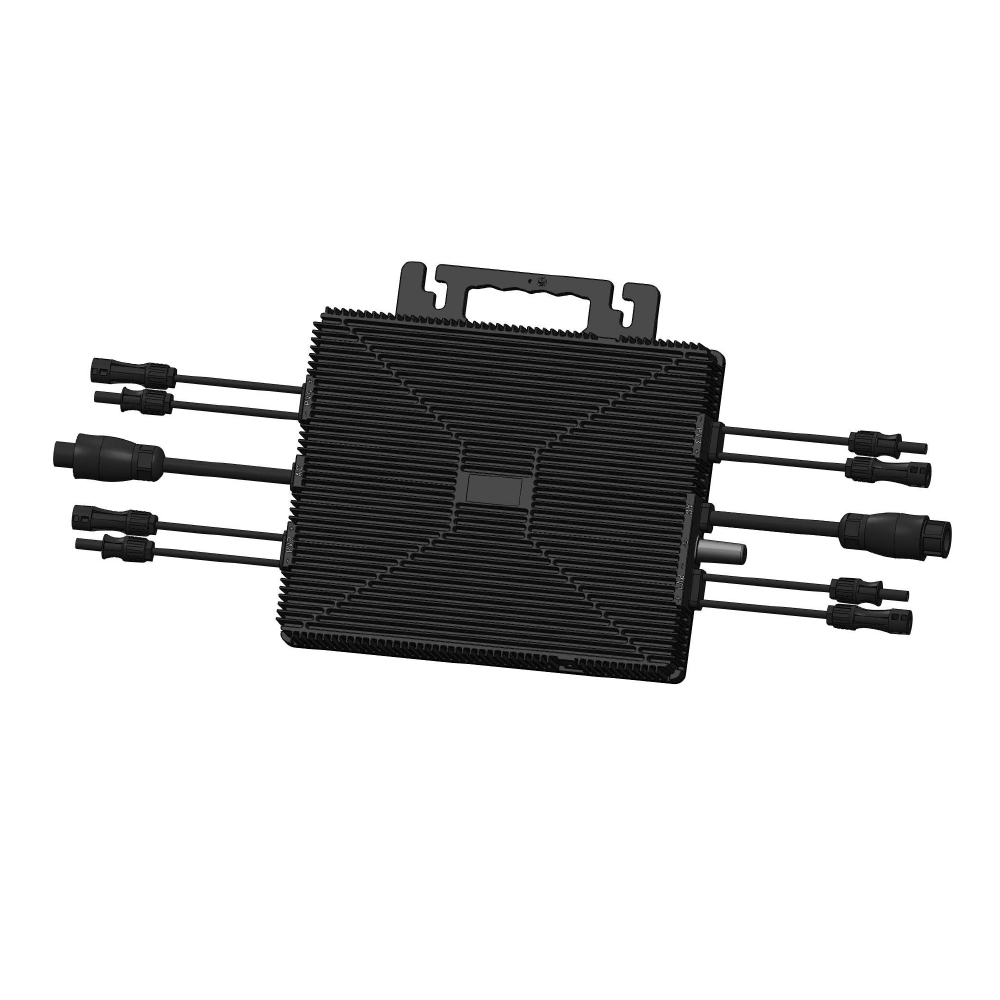

Micro inverter 1600W
2 independent MPPTs with an efficiency of up to 96%;
Maximum DC input current of 13.5A, suitable for mainstream photovoltaic modules in the market;
Maximum DC voltage of 60V, high safety;
Plug and play, easy installation;
Comprehensive intelligent monitoring and communication system;
IP 67 protection level, die-casting design;
25-year service life design, 10-year product warranty.
| Specification | Details |
|---|---|
| Model | TM-L1600M |
| Recommended PV Module Power | 280W-550W |
| Start-up Voltage | 28V |
| MPPT Voltage Range | 28-55V |
| Full load voltage range | 36-55V |
| Max. Input Voltage | 60V |
| Max. Input Current | 13A*4 |
| Max. DC Short Circuit Current | 19A*4 |

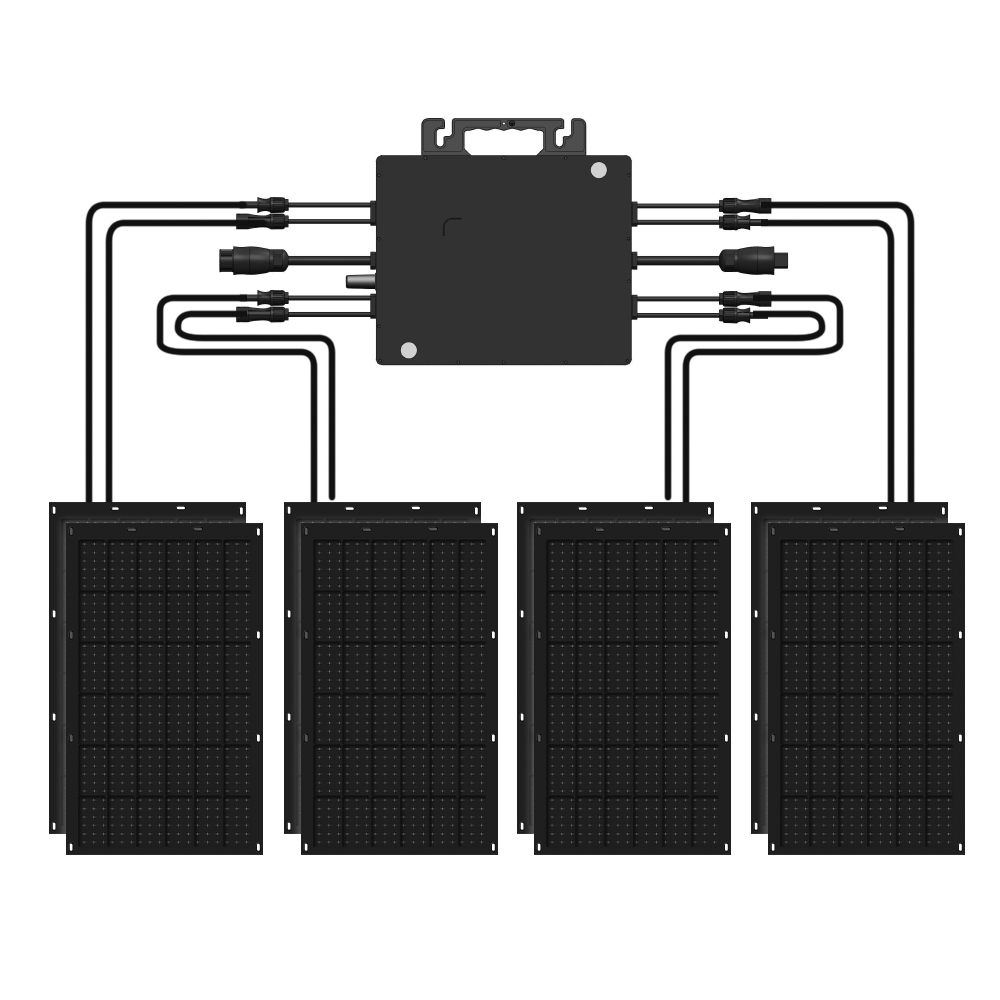

| Number of MPPTs | 4 |
| Ambient Temperature Range | -40℃ to +65℃ |
| Dimensions (WxHxD) | 312mm x 301mm x 43mm |
| Weight | 7kg |
| Enclosure Rating | IP 67 |
| Cooling | Natural Convection – No Fans |
| Type of Isolation | High Frequency Transformers |
| Overvoltage category | II(PV), III(Mains) |
| Inverter topology | Isolated |
| Certifications | VIEC62109-1, IEC62109-2:IEC61000-6; VDE4105; RF2019; NEN-EN 50549-1:2019; PN-EN 50549-1:2019 |
