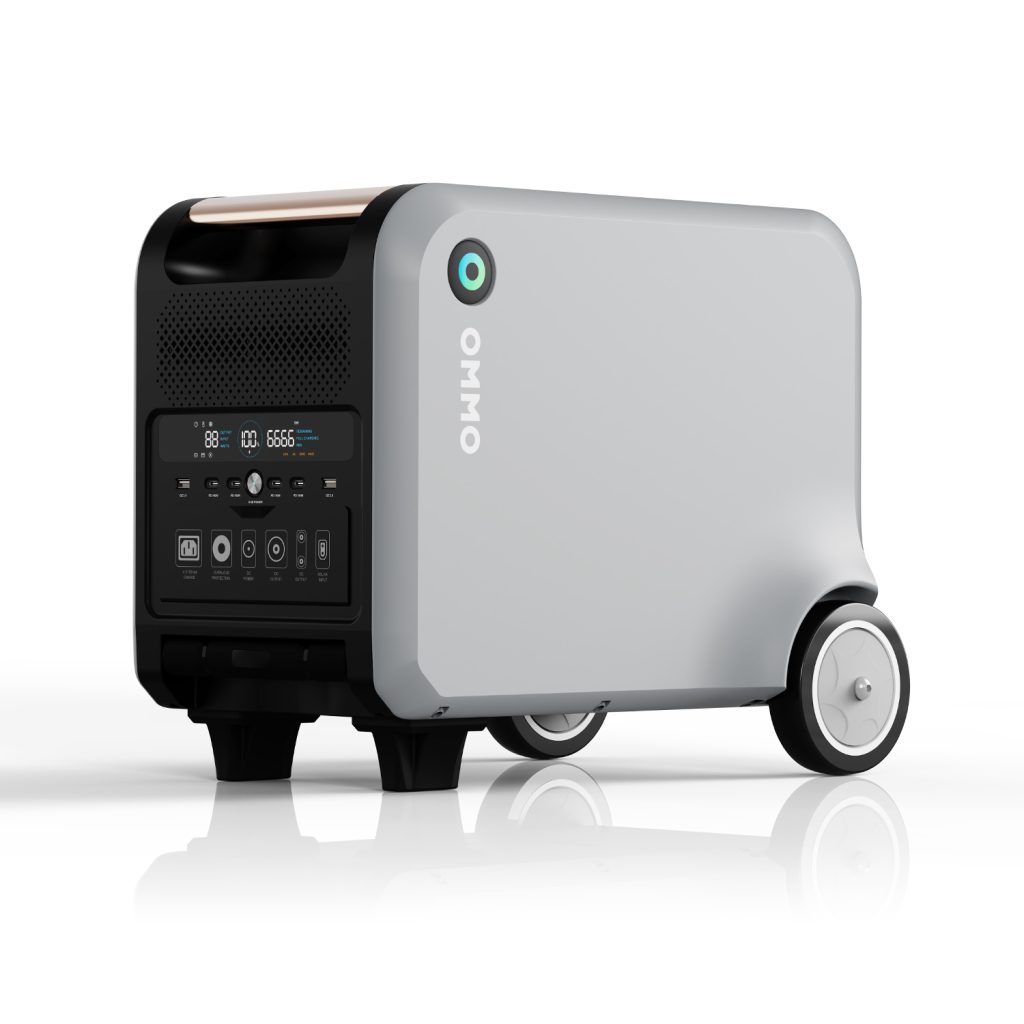

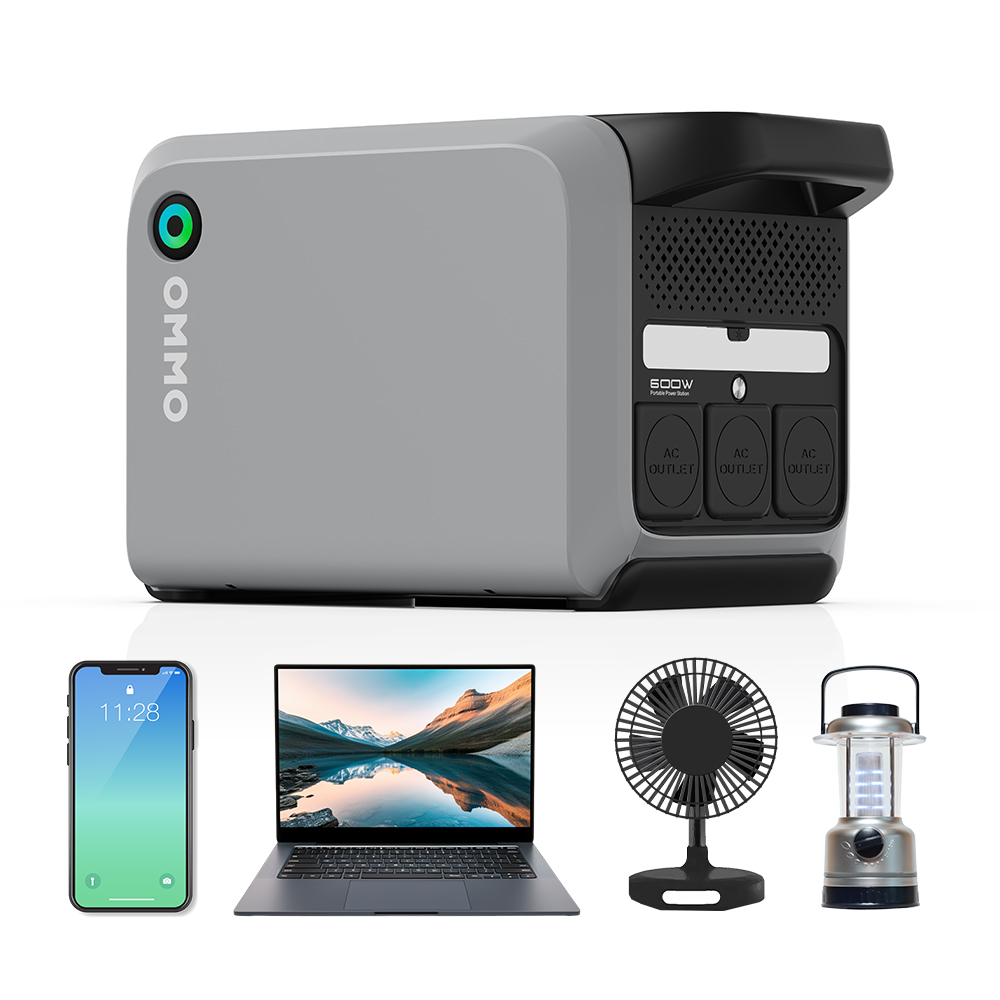

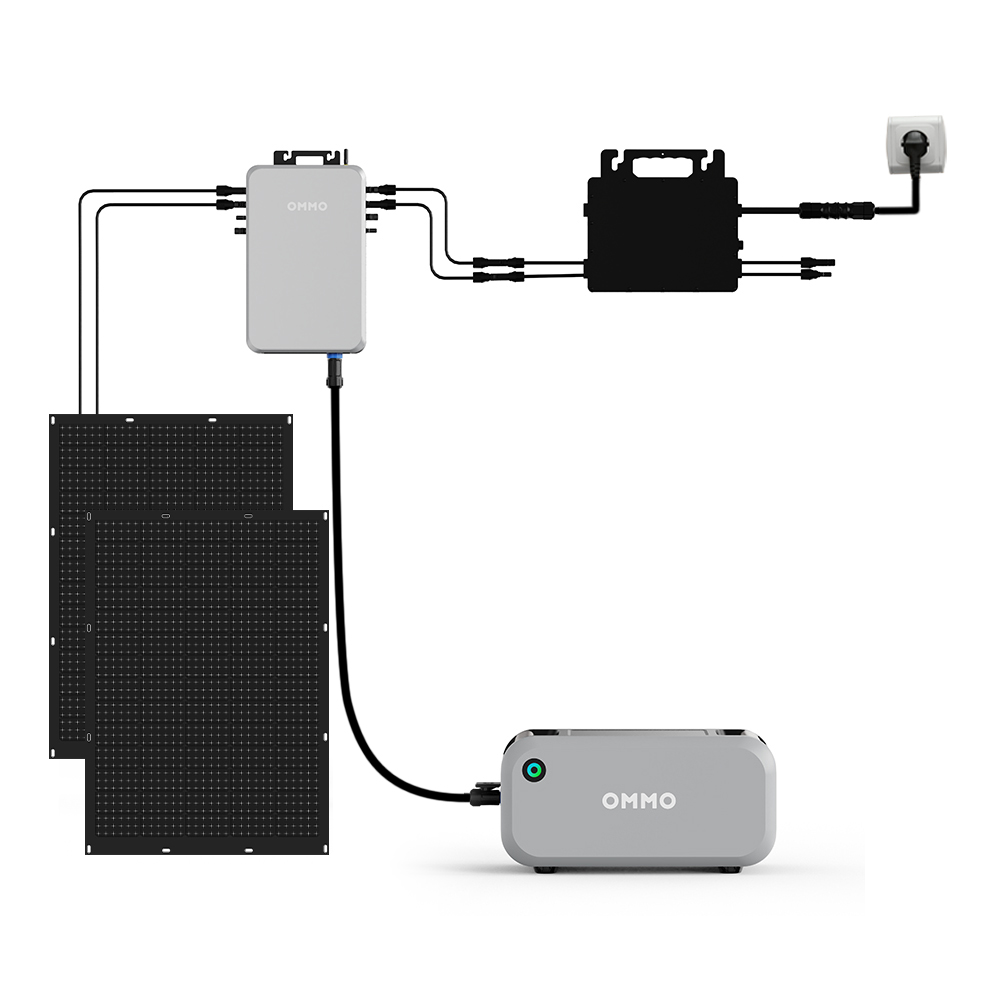

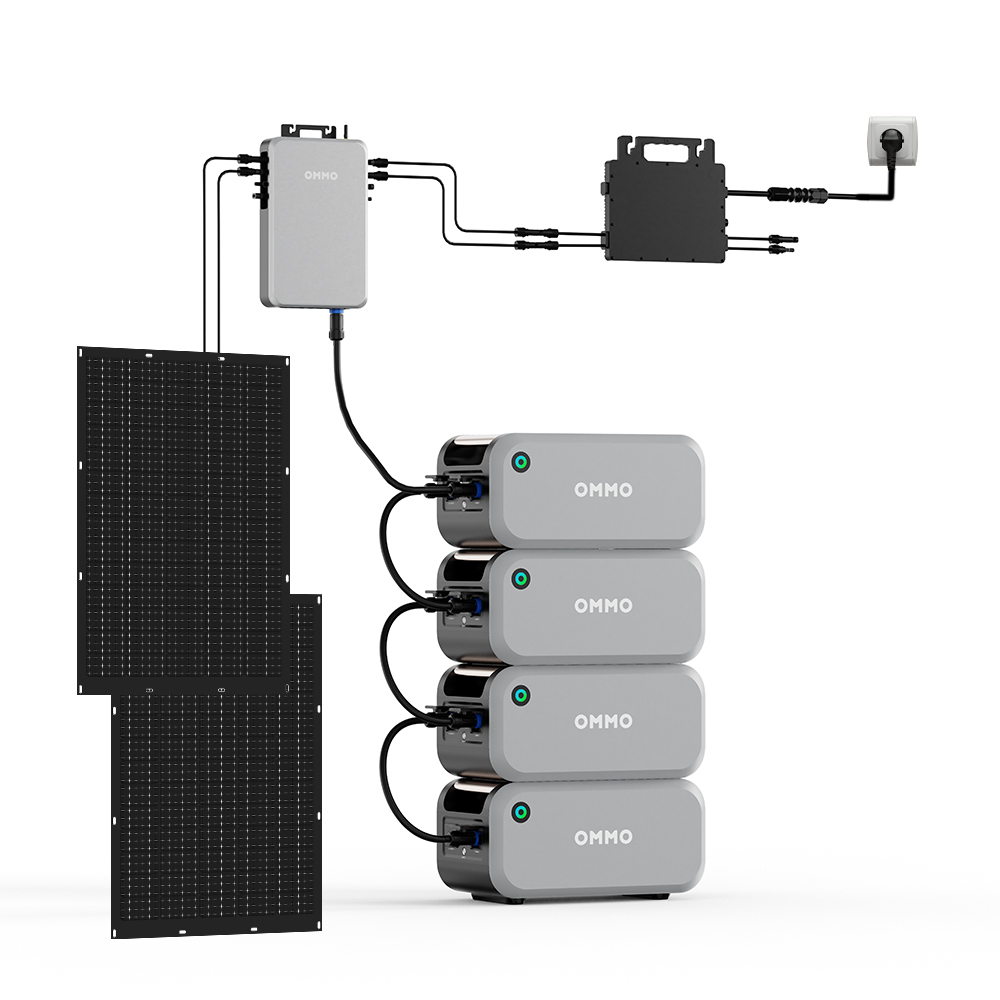

Portable Power Station, Balcony PV Solar Systems

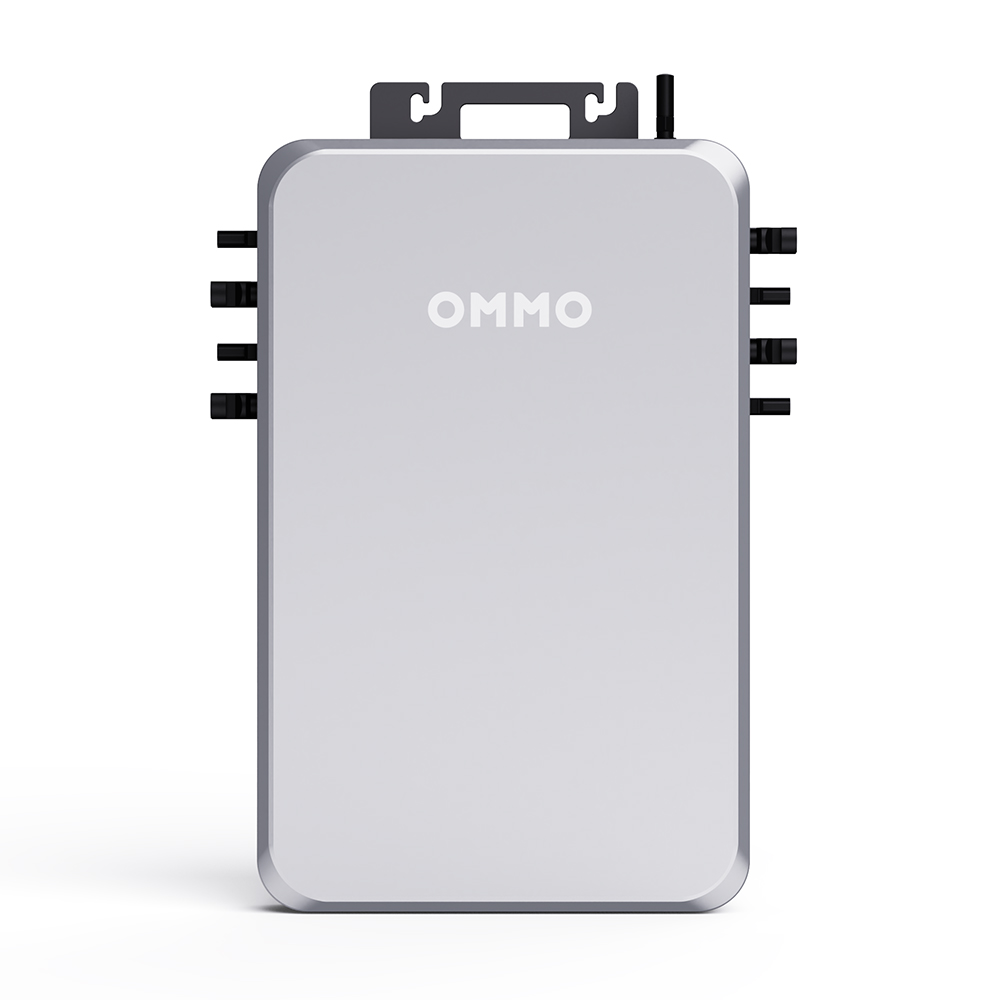

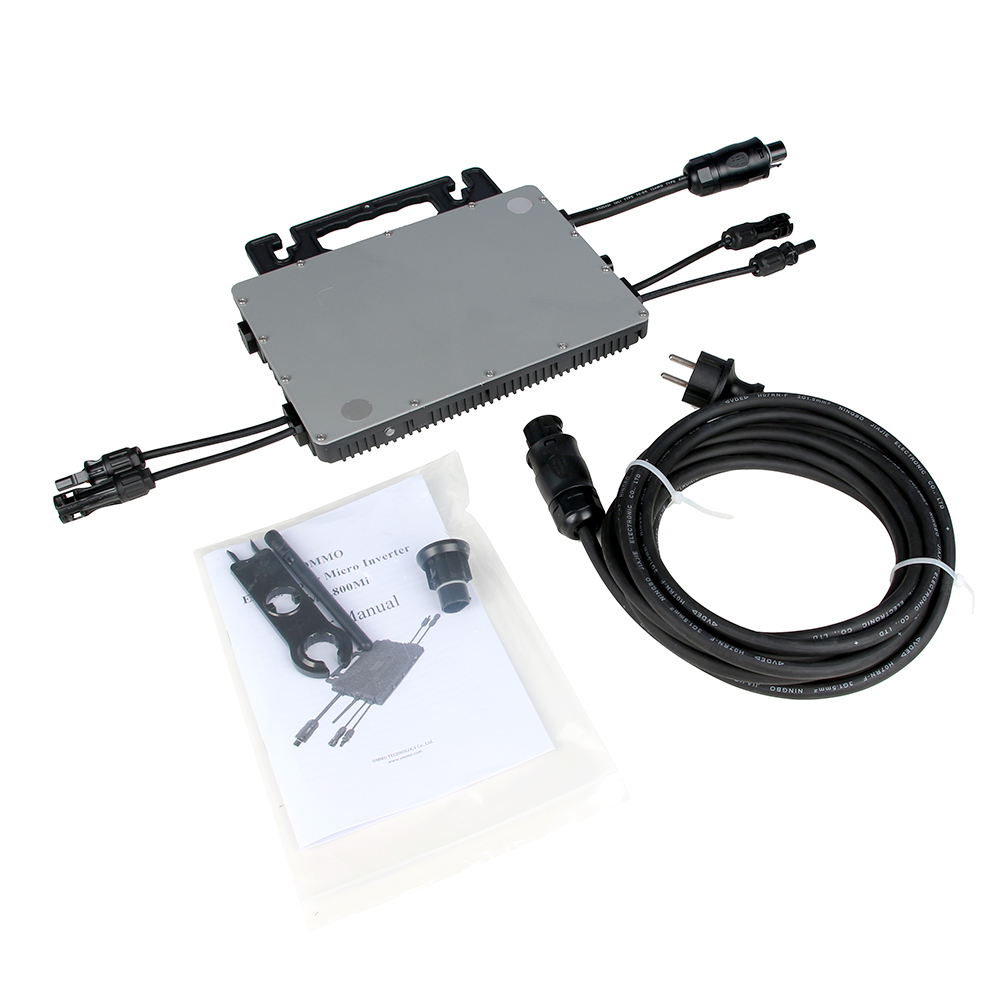

Micro inverter 800W

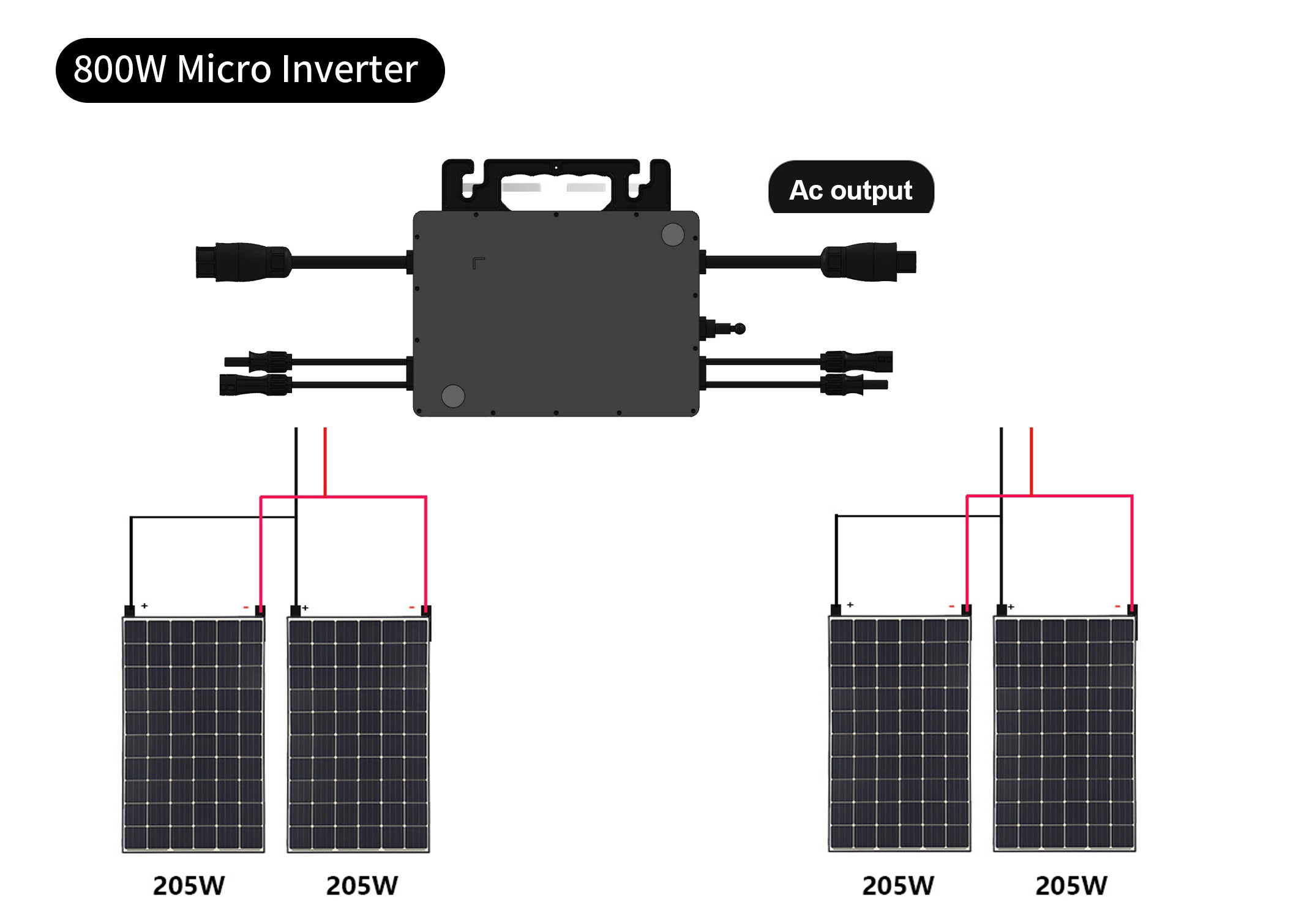

2 independent MPPTs with an efficiency of up to 96%;
Maximum DC input current of 13.5A, suitable for mainstream photovoltaic modules in the market;
Maximum DC voltage of 60V, high safety;

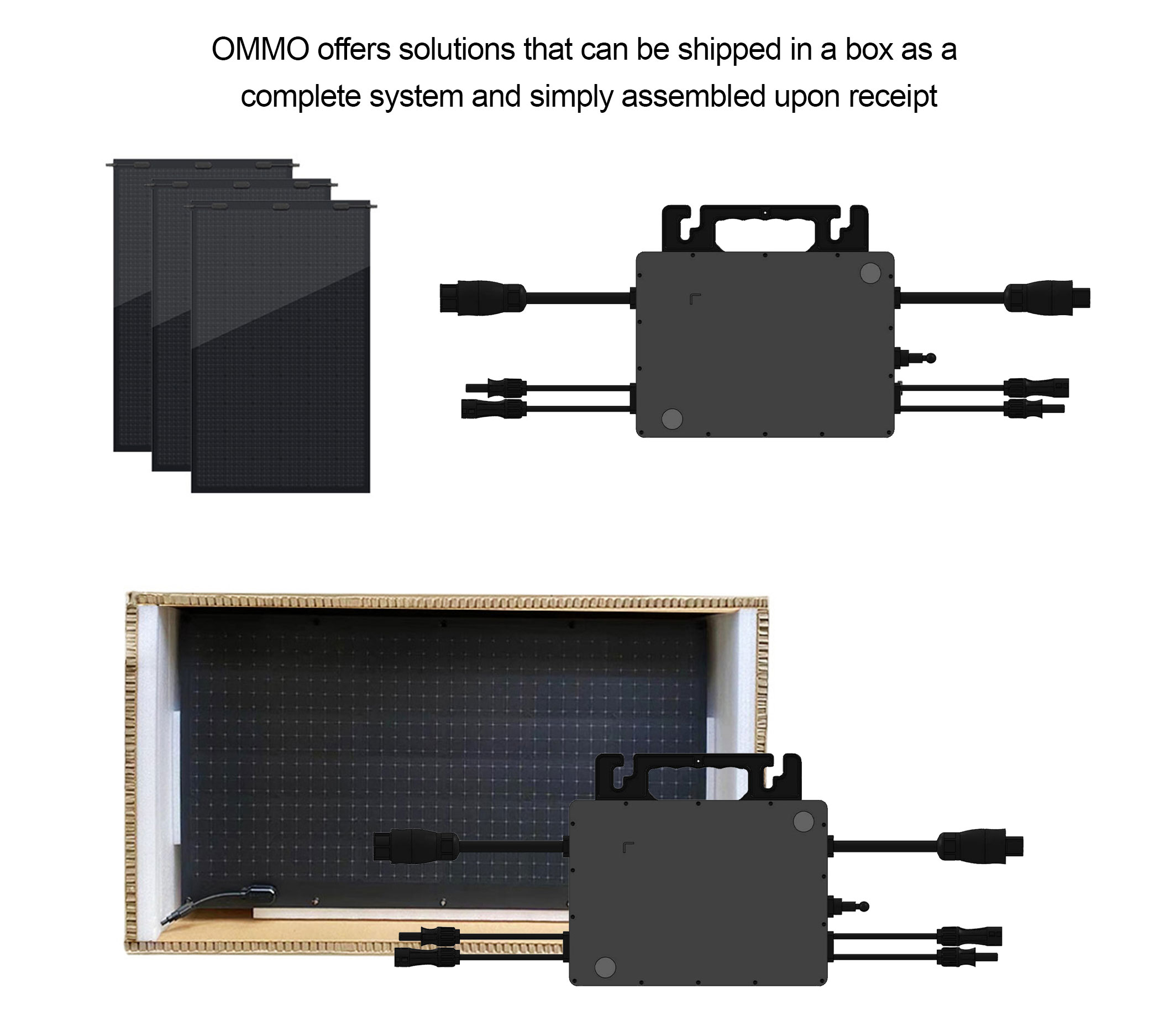

Plug and play, easy installation;
Comprehensive intelligent monitoring and communication system;

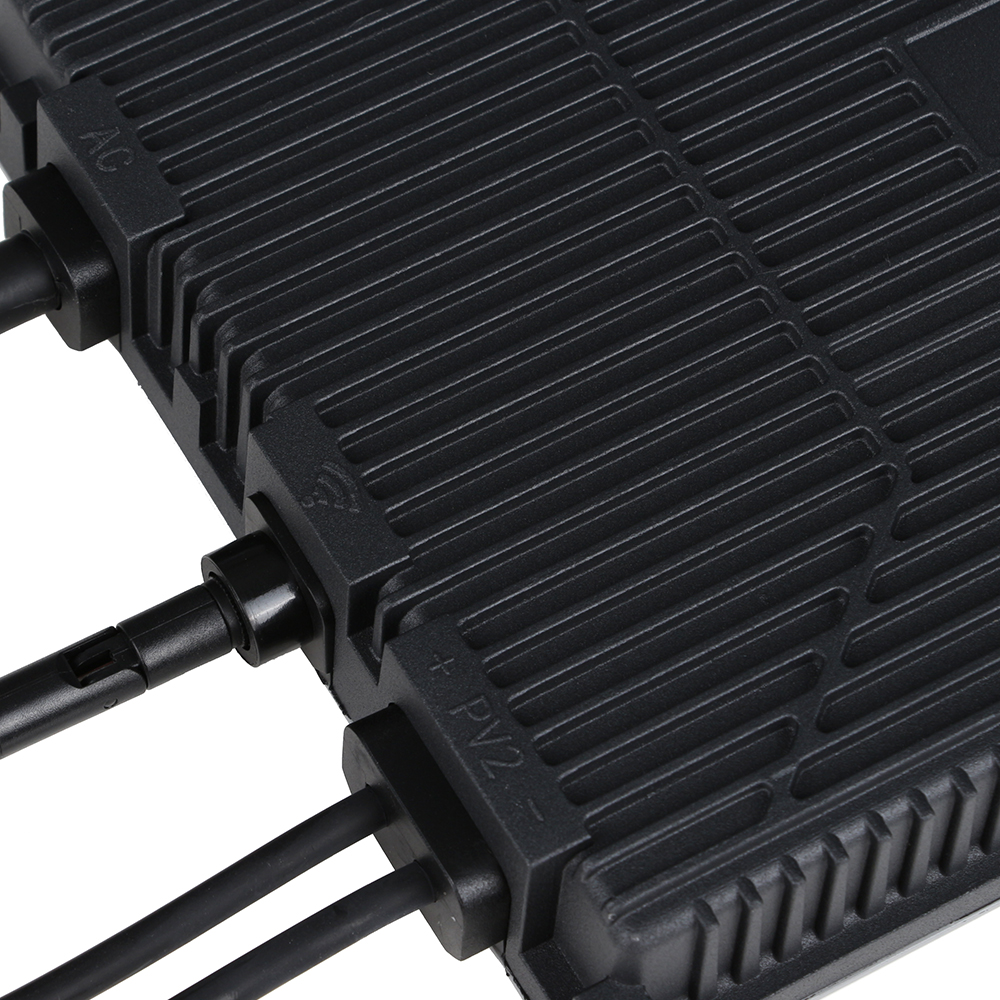

IP 67 protection level, die-casting design;
25-year service life design, 10-year product warranty.
| Specification | Details |
|---|---|
| Model | OM-L800M |
| Recommended PV Module Power | 280W-550W |
| Start-up Voltage | 20V |
| MPPT Voltage Range | 25-55V |
| Max. Input Voltage | 60V |
| Max. Input Current | 13.5A*2 |
| Max. DC Short Circuit Current | 16.5A*2 |
| Number of MPPTs | 2 |
| Ambient Temperature Range | -40℃ ~ +65℃ |
| Dimensions (WxHxD) | 260mm x 225mm x 32mm |
| Weight | 2.9kg |
| Enclosure Rating | IP 67 |
| Cooling | Natural Convection – No Fans |
| Type of Isolation | High Frequency Transformers |
| Certifications | IEC62109-1, IEC62109-2:IEC61000-6; VDE4105; VRF2019; NEN-EN50549-1:2019; PN-EN50549-1:2019 |
| Model | TM-L800M |
| Recommended PV Module Power | 280W-550W |
| Start-up Voltage | 20V |
| MPPT Voltage Range | 25-55V |
| Max. Input Voltage | 60V |
| Max. Input Current | 13.5A*2 |
| Max. DC Short Circuit Current | 16.5A*2 |
| Number of MPPTs | 2 |
| Ambient Temperature Range | -40℃ ~ +65℃ |
| Dimensions(WxHxD) | 260mm*225mm*32mm |
| Weight | 2.9kg |
| Enclosure Rating | IP 67 |
| Cooling | Natural Convection – No Fans |
| Type of Isolation | High Frequency Transformers |
| Communication | WiFi |
| Energy Management | Solarman Online Platform |
