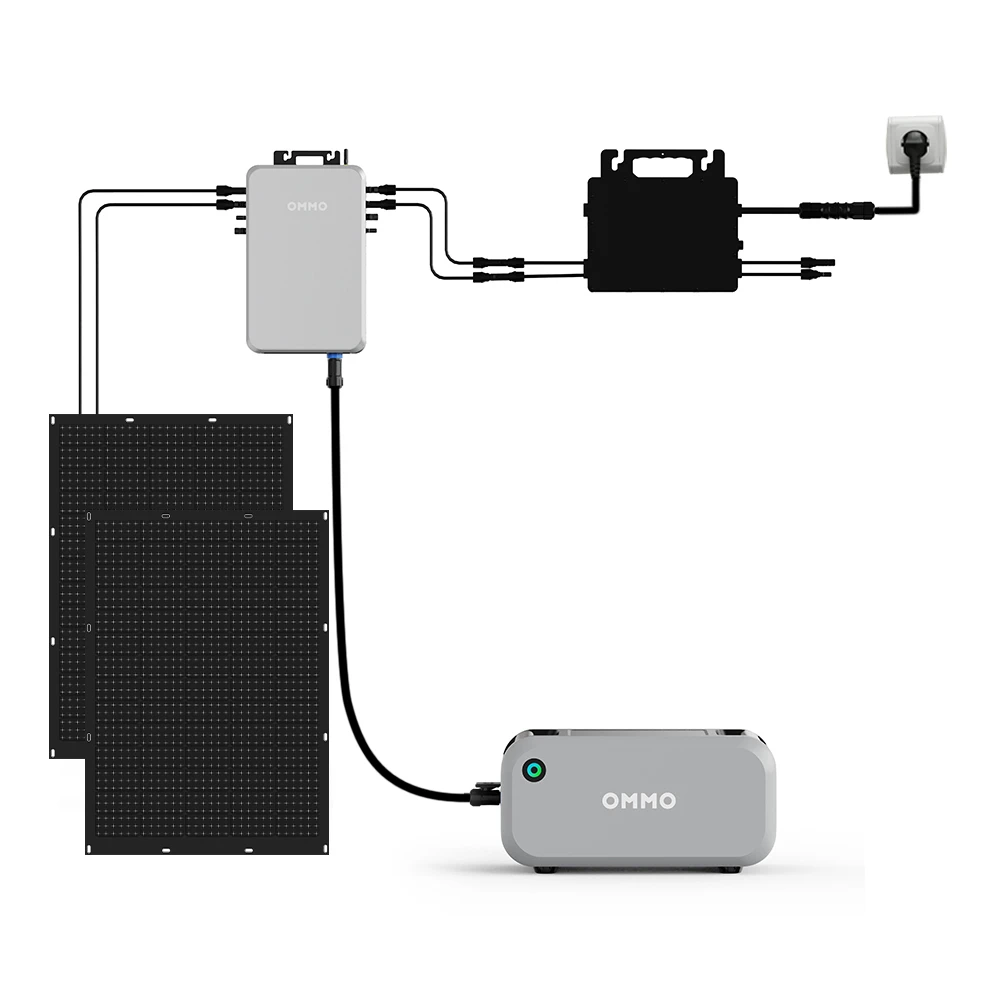

Portable Power Station, Balcony PV Solar Systems

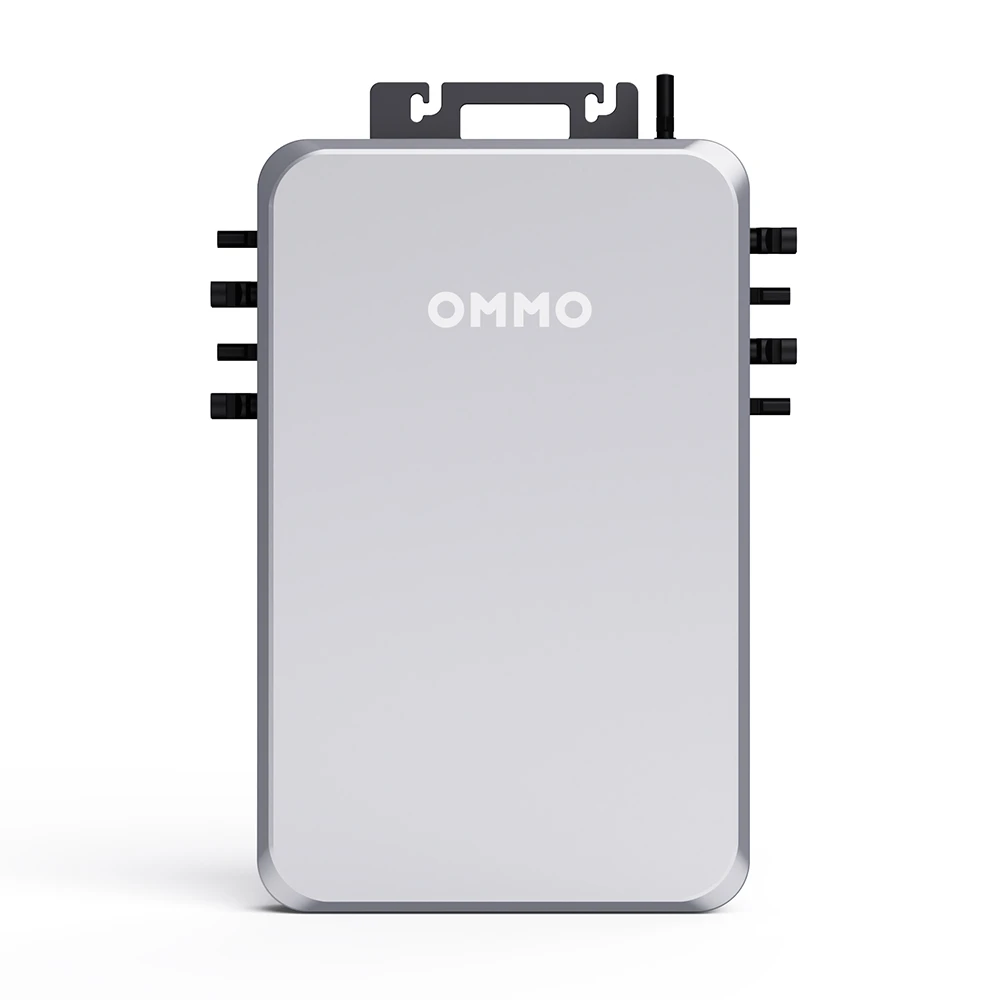

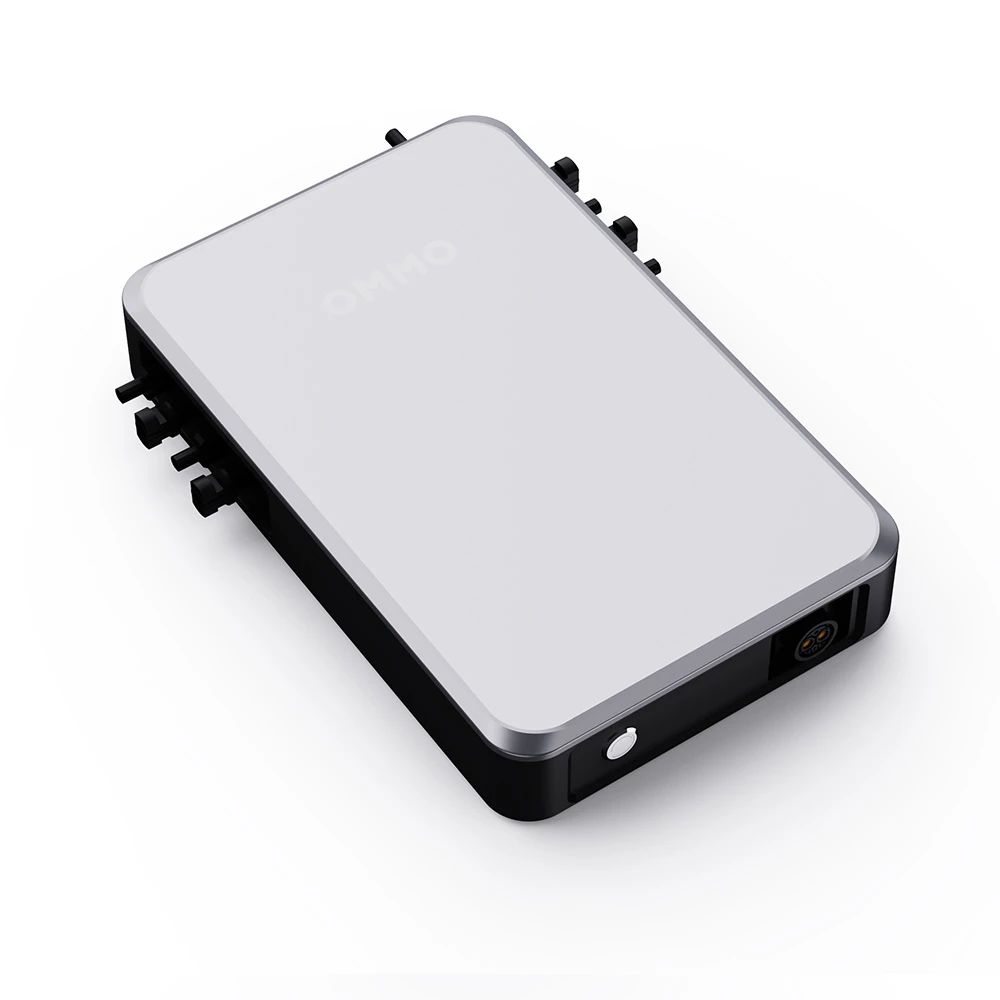

OMMO PV HUB Solar Charger Controller
·MPPT Tracking Efficiency of 99%. 1200W MPPT supports up to 1600W solar panel, allowing higher wattage panels for increased energy harvest and system design flexibility.
·It has anti-backflow function to protect the safety of the power grid and prevent electricity waste.
·Intelligent eco-energy manage-ment: OMMO APP;
| Specification | Details |
|---|---|
| Model | OM-1200-PV-HUB |
| Color | Silver |
| Dimension | 375×220×60mm |
| Net weight | 3.2kg |
| Input voltage range | 12V-60V |
| PV Input power | 600W×2 Max |
| Output voltage range | 18V-55V |
| Output power | 600W×2 Max |
| Battery voltage range | 40V-58.4V |
| Charging power | 1200W Max |
| EMC grade | CLASS-B |
| IP protection | IP65 |
| Peak efficiency | 0.98 |
| MPPT tracking efficiency | 0.99 |
| Short circuit current | 66A |
| Operating temperature | -20°C~45°C |
| Communication | RS485, CAN |
| WiFi | Yes |
| Anti back-feed | Yes |
